Floor tile bevelling machine BMV 600 4 + 4

The machine calibrates and bevels modular marble tiles or tiles, refines geometric and shape tolerances (square plan) and also performs bevels of various sizes, called bevels, on the four sides of the visible surface.

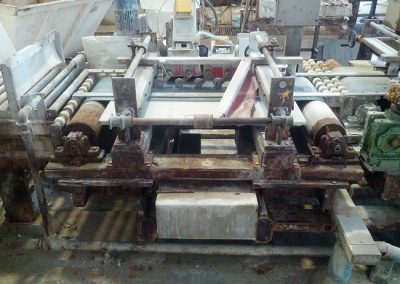

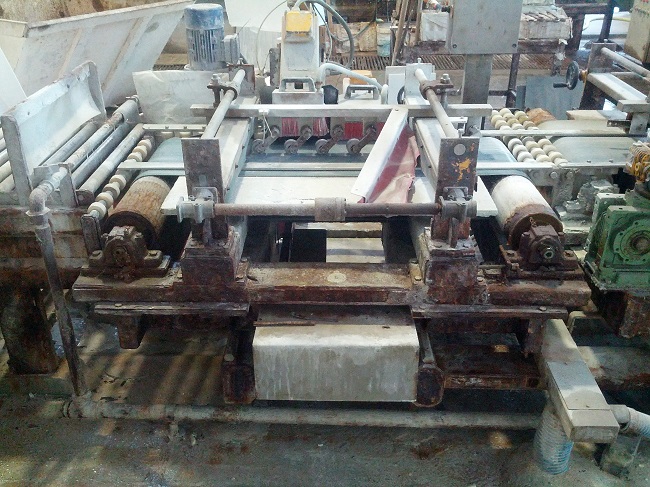

Structure of the machine

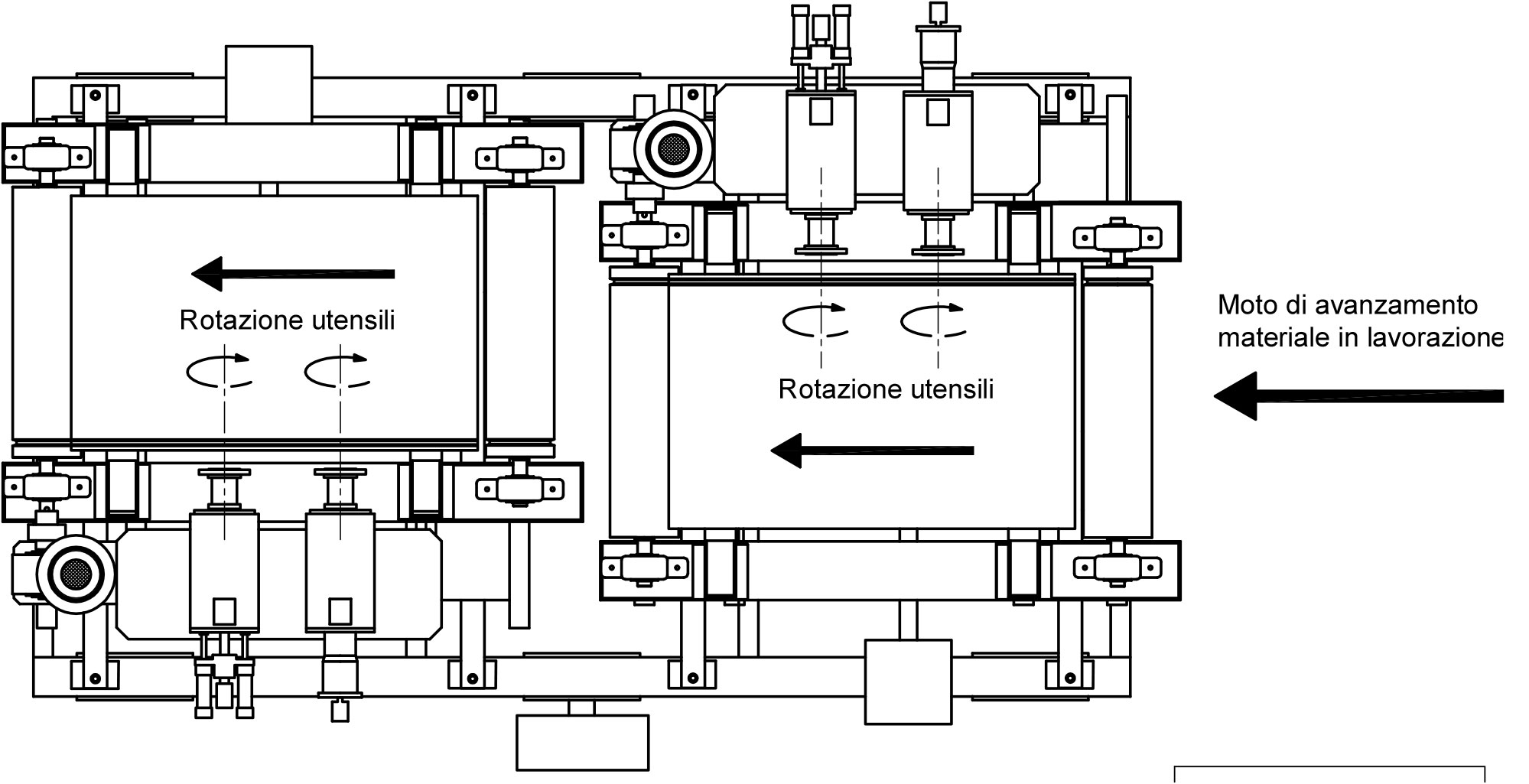

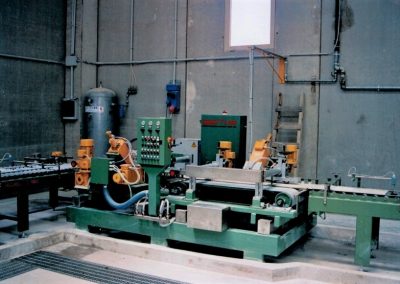

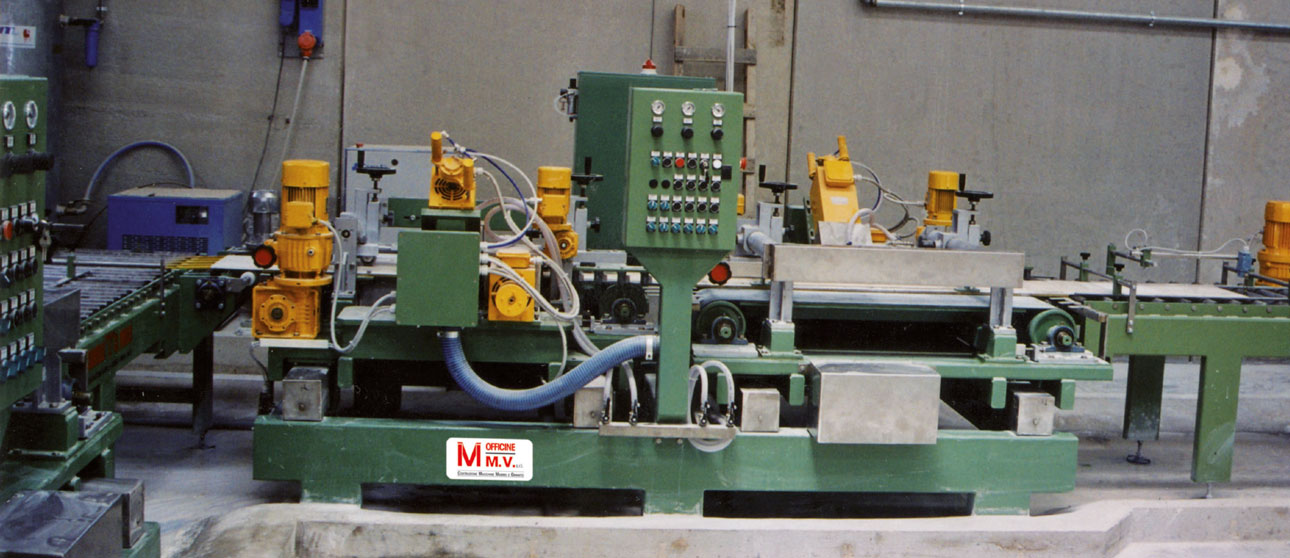

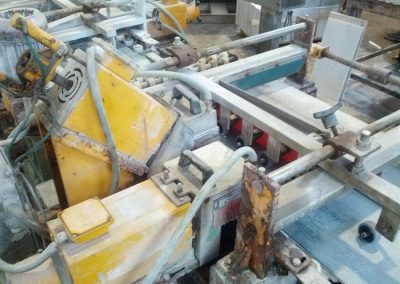

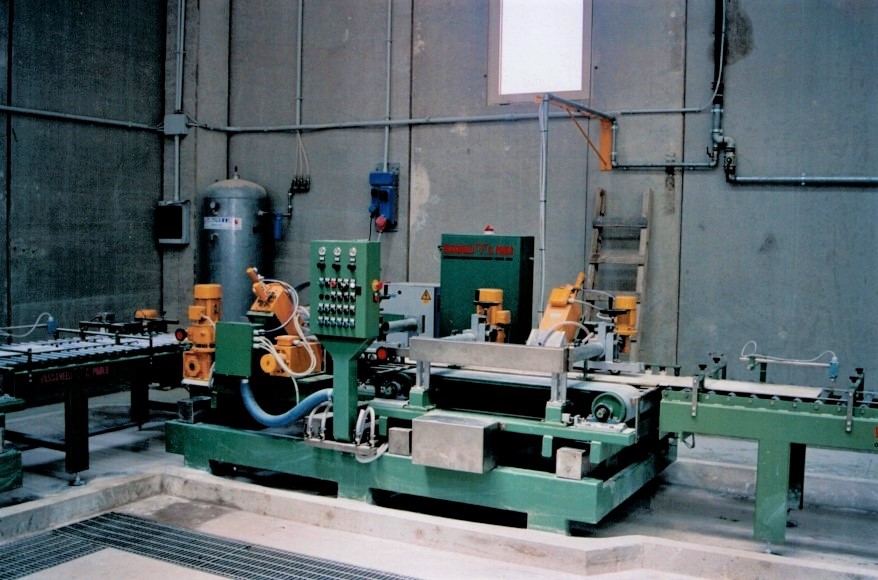

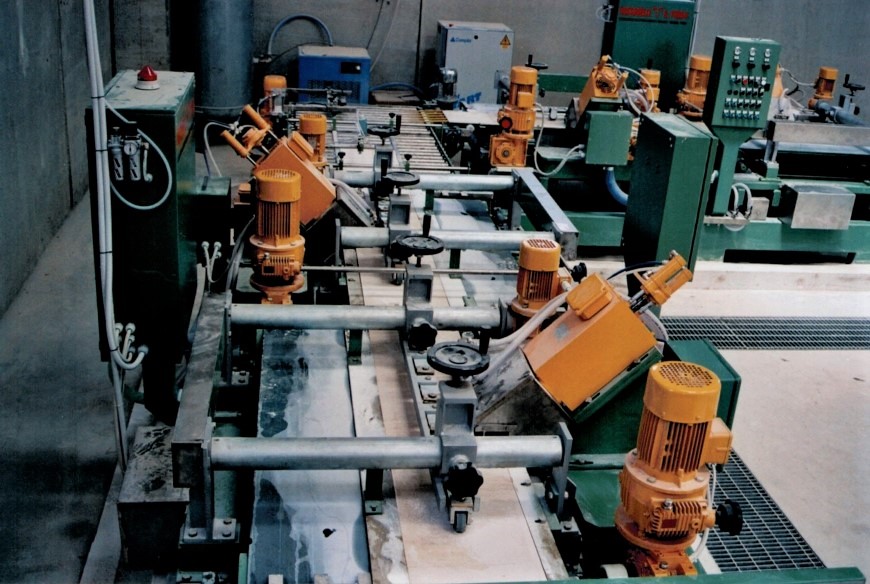

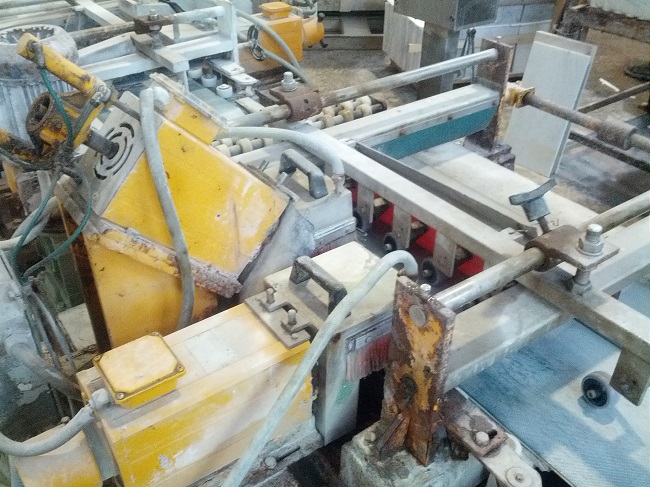

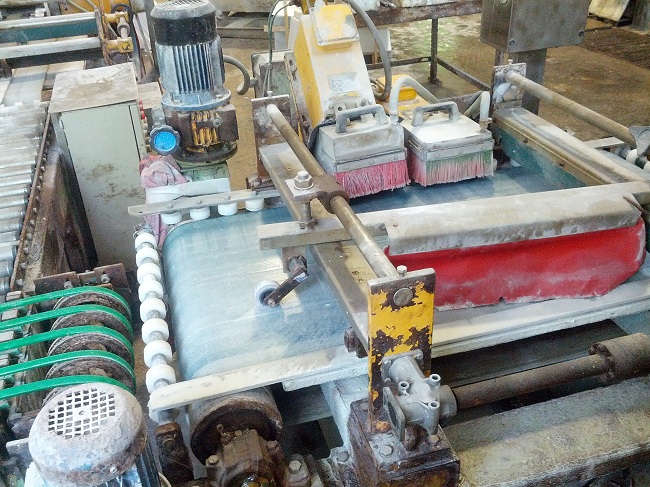

The 600 bevelling machine for marble is made up of 2 stations, each equipped with two gauging and bevelling groups, which perform the processing to the set size, on the 2 longitudinal sides and on the respective 2 edges of the exposed face of the tiles or tiles.

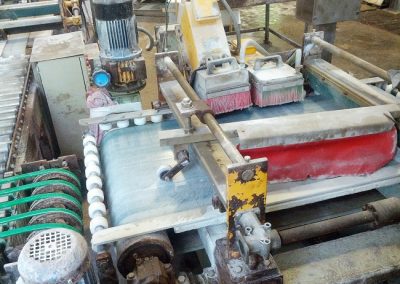

A motorized tilting diverter is positioned between the two stations, which receives the tile from the first station and sends it to the second beveling station, perpendicular to the arrival one, in order to perform the processing on the two remaining sides.

Technical features

Processing width: 620.0 mm
Maximum workable thickness: 35.0 mm
Fixed bevel angle: 45 °
Maximum tool diameter: 125.0 mm
Bevel feed rate automatically adjustable from the control panel: 70.0 mm
Number of calibrator groups: 04
Number of 45 ° chamfering groups: 04
Width of a bevel station: 1,850.0 mm
Length of a bevel station: 3,100.0 mm
Complete linear length for 4 sides machining: 7,300.0 mm
Machine height: 1,550.0 mm
Speed of the sliding belts: 0 ÷ 4.000,0 mm / min
Total weight of the 2 stations: 6,800.0 kg
Maximum pneumatic system pressure: 8.0 bar
Total water consumption: 120.0 l / min is recommended
Power of each bevel group: 1.5 kW
Power of each calibrator group: 1,5 kW
Total installed power of the 2 stations: 20.0 kW
Network frequency: 50 Hz
Mains voltage: 400.0V
Electricity supply phases: 3

Floor tile bevelling machine BMV 600 4 + 4
